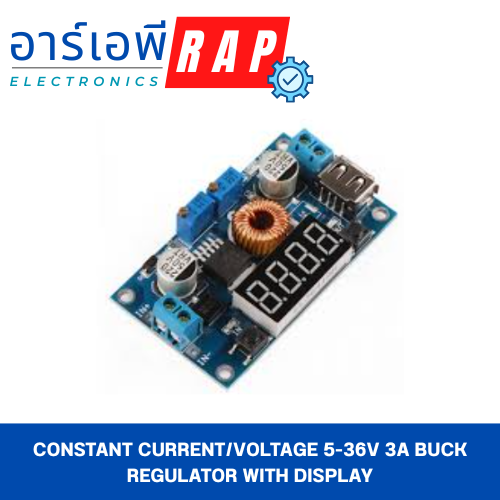

Constant current/voltage 5-36V 3A buck regulator with Display

1.Input voltage range:5-36VDC
2.Output voltage range:1.25-32VDC adjustable
3.Output current: 0-5A
4.Output power: 75W
5.High efficiency up to 96%
6.Built in thermal shutdown function
7.Built in current limit function
8.Built in output short protection function
9.Input reverse polarity protection: None (if required, high current diode in series with the input).
10.Size: L x W x H: 68.2*38.8*15mm
11.Weight: 38g

Product Description
DROK buck converter input voltage range is DC 5V-36V, output voltage range is DC 1.25V-32V continuously adjustable, default output 17V, max output current is 5A(please use it within 4.5A).
Equipped with Multimeter: the voltage regulator module is with voltmeter/ammeter/power meter, can be directly used without external multimeter.
Application: our buck converter with over current protect function; battery charger for solar panels, wind driven generator.; high power LED constant current driver module.
With USB Port: the step down converter is with USB port, can be used to charge for digital products.(Note: USB output voltage is the same as the module voltage output, please check before using.)

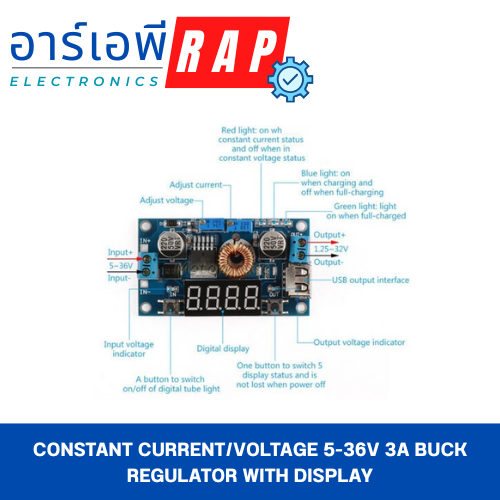

Constant Current & Constant Voltage Mode: the reducer module is with two kinds of mode: constant current and constant voltage, the indicator light will indicate which mode it is under.

Usage
1. Use as an ordinary buck module with overcurrent protection capabilities;
2. Use as a battery charger;
3. Use it as a constant current LED driver module.
